PC-CH-001

Published 2011-01-12 at 678 × 850 in PolyController
PolyController Central Heating

PolyController Central Heating

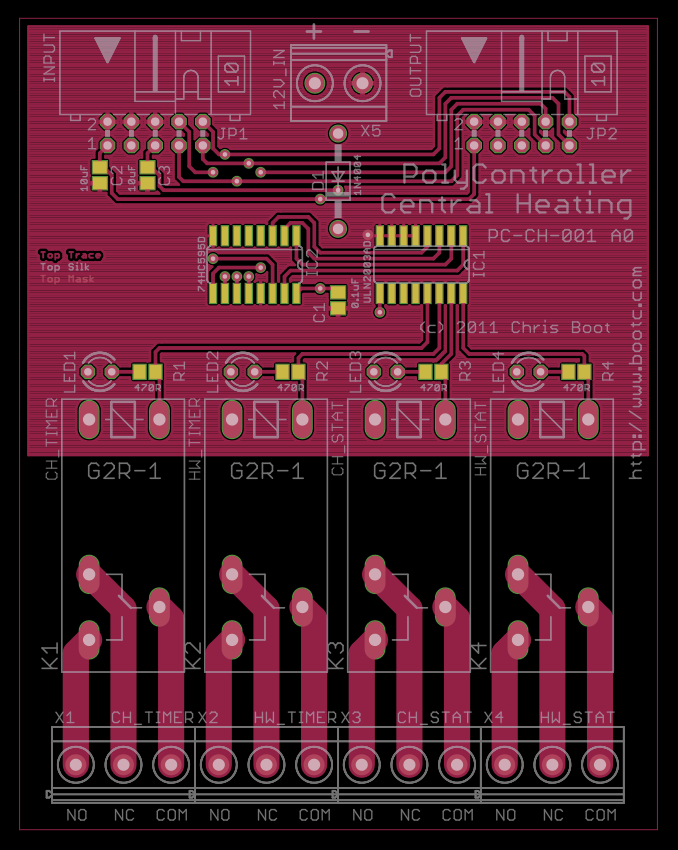

This is the relay board that attaches to the Main Board. It houses 4 relays capable of 8A current each. PCB layout (top side only).
